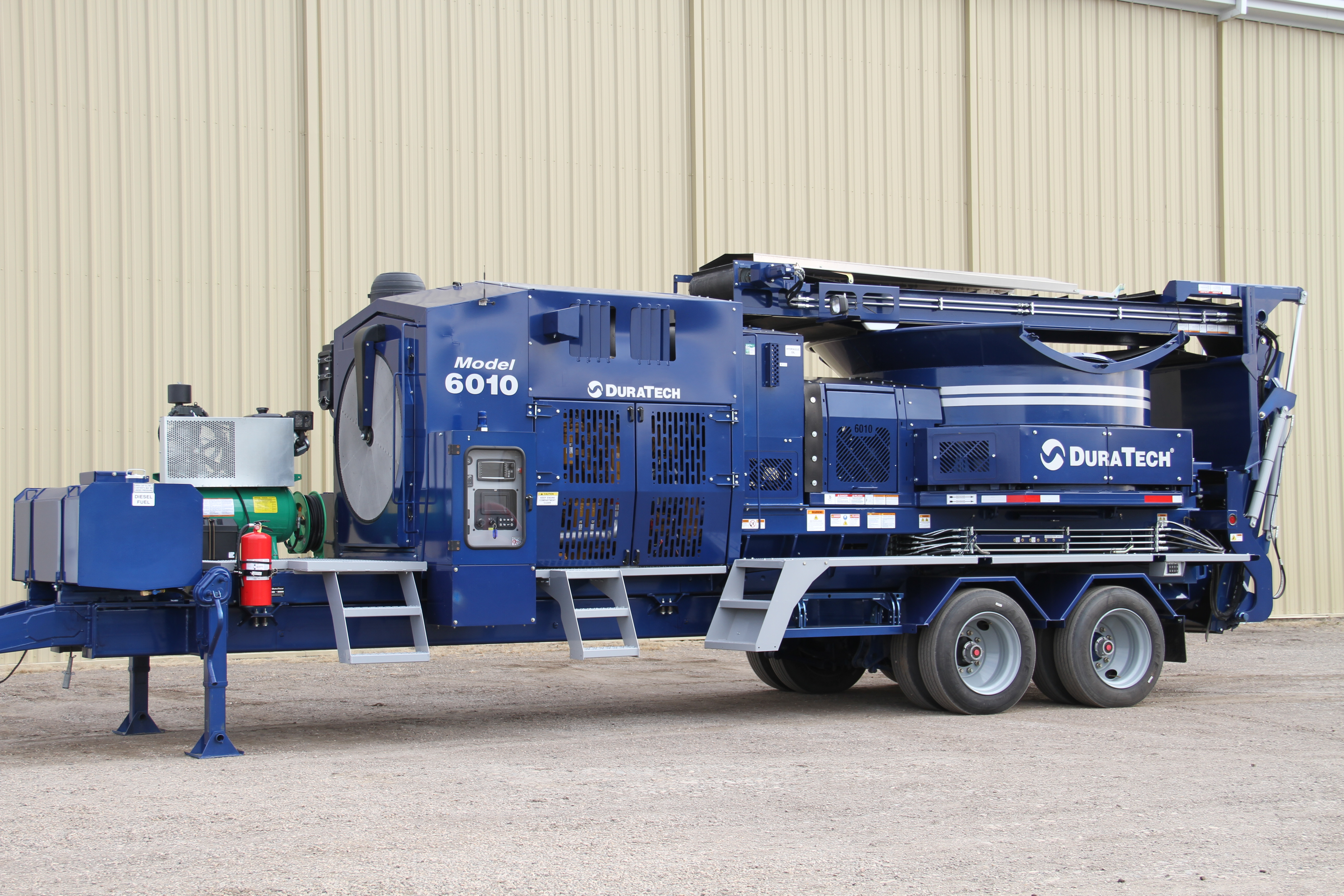

6010 Pintle Hitch Industrial Tub Grinder

You Asked For It and We Got It

The DuraTech 6010 is built for extreme wear and tear and comes equipped with a powerful Caterpillar C15 Tier III electronic diesel engine in optional sizes.

Easy operation is the key. Thanks to remote controls and a microprocessor-controlled wet clutch, it’s easier than ever to operate. The self-cleaning air intake system helps protect the engine, reduce engine noise, and extend the life of your machine. No matter the terrain, the DuraTech 6010 gets the job done.

Download Manual Download Brochure


Rotary Self-Cleaning Screen with Enclosed Engine Compartment

The self-cleaning rotary air intake screen helps maintain a constant stream of clean air to the radiator and engine. The engine compartment is framed by two doors on each side which provide easy access to the engine for maintenance and servicing.

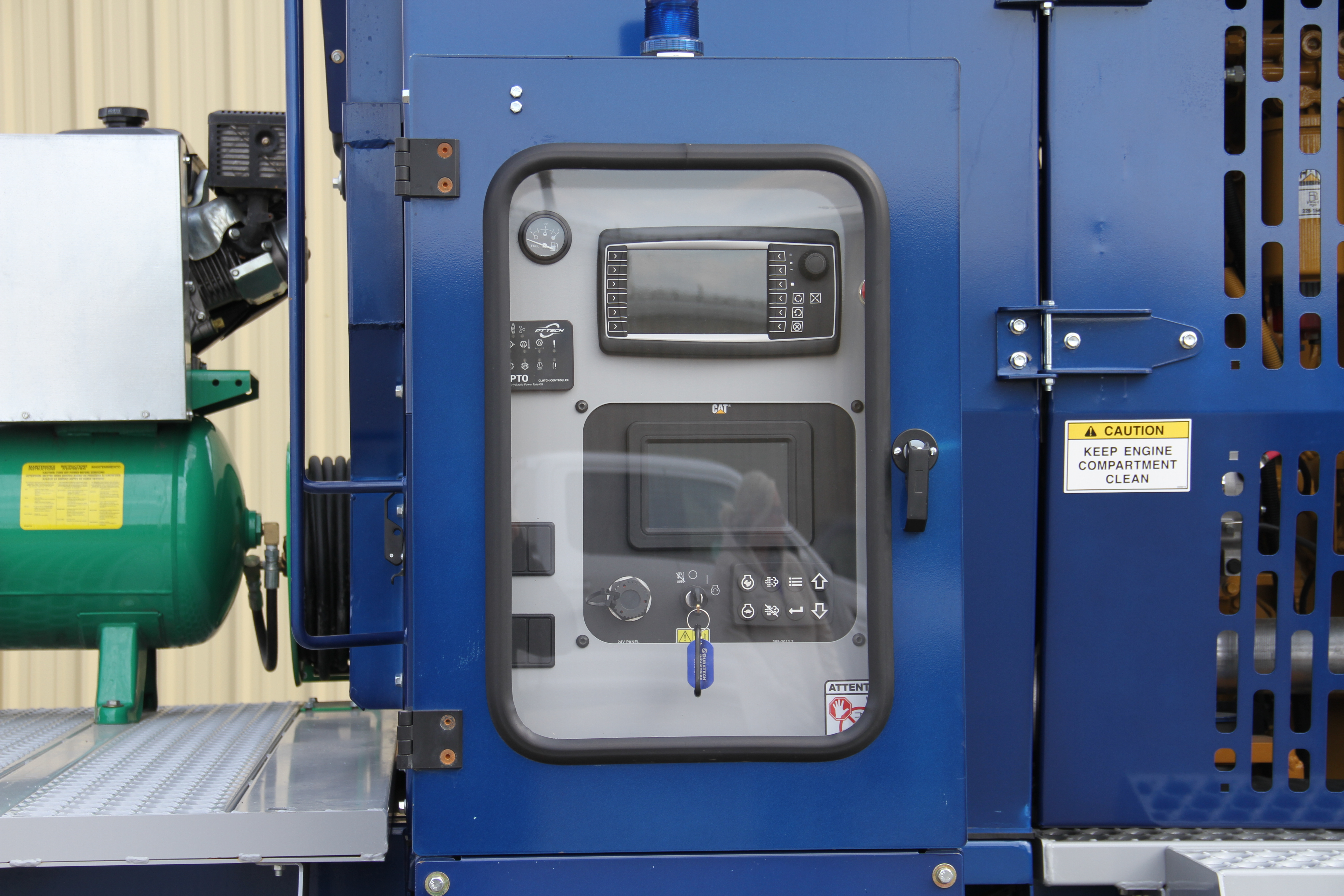

Command Console with Remote Control

The Model 6010P command console features master engine controls, gauges, and shutoff. Also included on the command console are electric over hydraulic controls for the clutch, governor, and stacking conveyor. The optional 6-function remote controls engine stop, tub rotation, stacking conveyor, and optional tub cover.

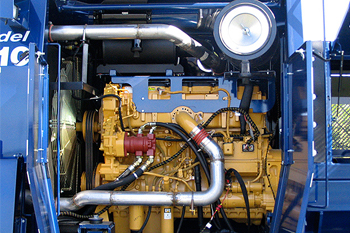

C15 Caterpillar Electronic Diesel Engine with Enclosed Engine Compartment

The 6010P is powered by either a 475 HP (354.2 kW) or a 540 HP (401.7 kW) C15 Caterpillar Electronic diesel engine that is backed up by Caterpillar’s superior service and reliability. The engine is housed in an enclosed engine compartment to protect the engine from debris while reducing noise levels.

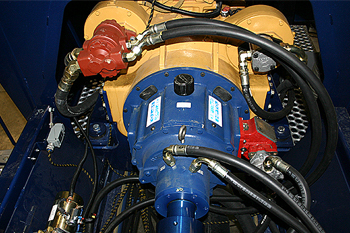

PT-Tech HPTO Oil Cooled Wet Clutch

The 6010P Industrial Tub Grinder is equipped with a self-adjusting PT-Tech HPTO oil cooled wet clutch. This clutch is microprocessor-controlled with a built-in torque limiter and brake that provide superior protection for the engine and drive line.

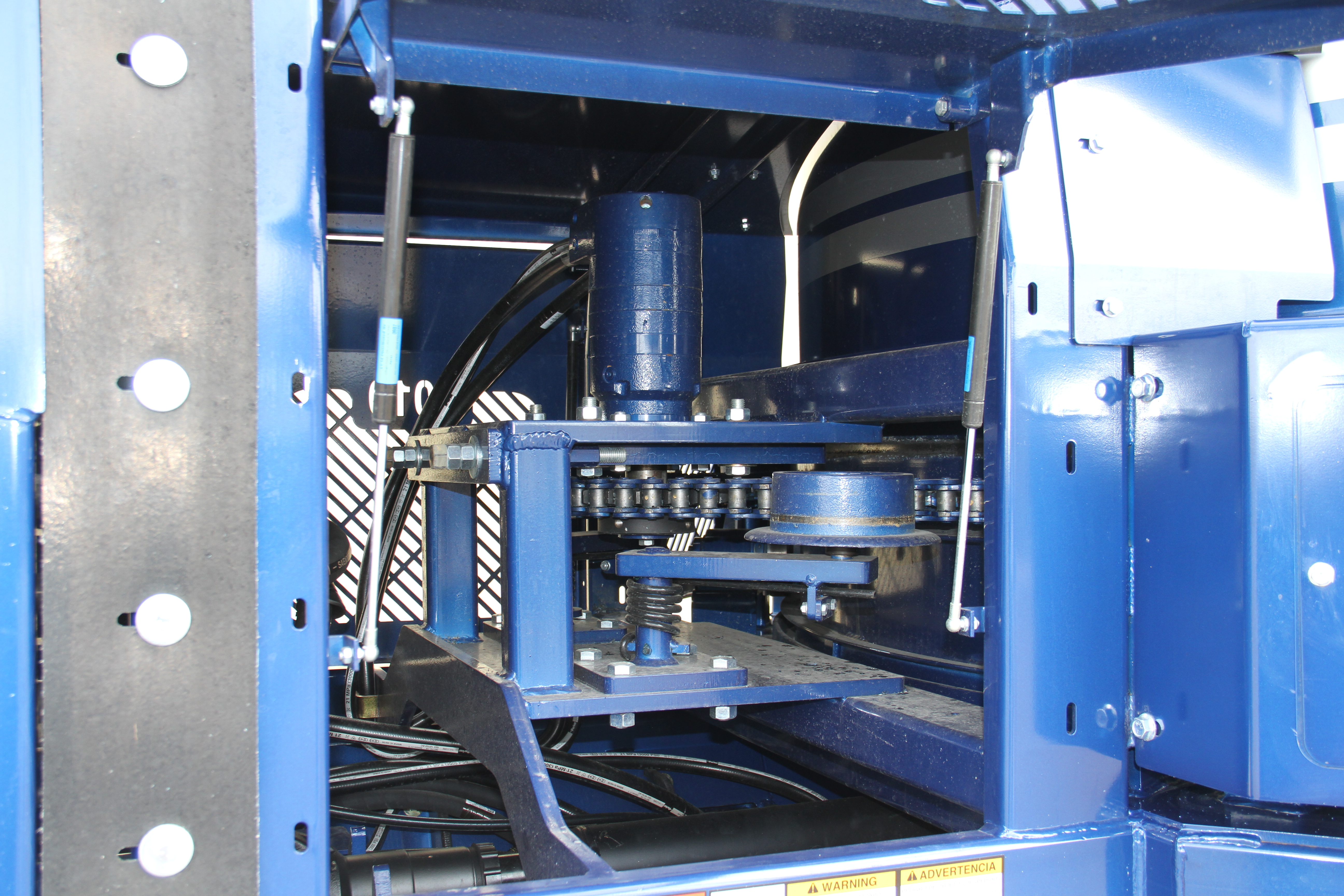

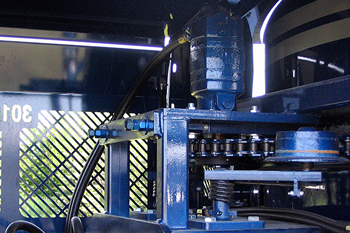

Single Drive Orbit Motor Drives the Tub

Utilizing a heavy-duty 120H drive chain, a continuous chain sprocket around the tub, an 8” (20.32 cm) heavy-duty tub channel, and dual spring adjustable chain tension, the tub is driven by a single orbit motor. Tub speed is controlled by the electronic governor.

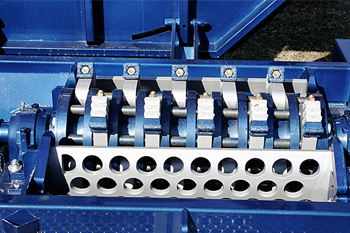

44” Rotor

The 6010P Industrial Tub Grinder is equipped with a 44” (111.76 cm) rotor mounted on a 6” (15.24 cm) shaft with 4” (10.16 cm) greasable bearings. The dynamically balanced rotor may be used with either 20 fixed hammers or 40 swinging hammers

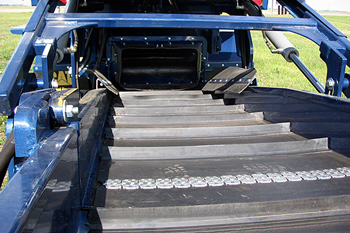

30" Wide Belly Belt

The 30" wide impact-resistant belly belt carries the finished product to the stacking conveyor.

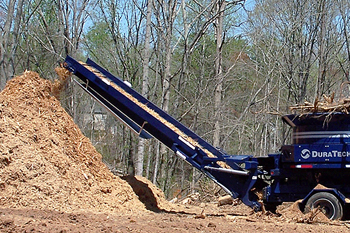

30” Wide x 26’ Long Oscillating Top Drive Stacking Conveyor

The 30” (76.2 cm) wide by 26’ (7.92 m) long top drive stacking conveyor allows the operator to load material into a truck or onto a pile up to 18’ (5.48 m) high. Additionally, the stacking conveyor swings 50 degrees from side-to-side. An optional magnetic roller and aluminum chute remove ferrous metal from the finished product.

Find a DuraTech Dealer

Standard Options

  • Command console
  • 44” router mounted on 6” rotor shaft with 4” oil bath bearings
  • HPTO oil cooled clutch
  • Impact-resistant vulcanized belt
  • 30” x 26’ stacking conveyor
  • Single orbit motor tub drive through 120H chain

Optional Features

  • Remote control
  • Magnetic roller complete with aluminum deflector chute
  • Screen sizes
  • Lockable steel toolbox
  • Tub cover


Weight w/ Pintle Hitch 35,840 lbs. (16,256.75 kg)
Transport Width 8 ft. 6 in. (2.54 m)
Transport Height 11 ft. (3.35 m)
Transport Height w/ Tub Cover 135.82 in. (345.01 cm)
Transport Length w/ Pintle Hitch 38 ft. 4 in. (11.68 m)
Axle (2) - 22,500 lbs. (10,205.82 kg)
Electrical 24 volt machine
Tires 255/70R X 22.5
Engine: 475 hp (354.21 kW) CAT C15
540 hp (402.68 kW) CAT C15
Fuel Capacity 180 Gallons (681.37 Liters)
Hydraulic Oil Capacity 50 Gallons (189.3 Liters)
Lights Clearance, Directional
Tub Width 10 ft. (3.04 m)
Depth 46 in. (116.84 cm)
Tub Diameter at Base 8 ft. (2.43 m)
Tub Wall 1/4 in. (.635 cm) Thick
Tub Floor 3/8 in. (.953 cm) Thick
Tub Drive 120H Chain, Single Drive Hydraulic Motor
Service Access 90° Tilting Tub
Tub Speed Sensor Electronic Self Governing
Stacking Conveyor 26 ft. (7.92 m) Long x 30 in. (76.2 cm) Wide
Belly Conveyor 30 in. (76.2 cm) Wide Impact Resistant
Hammers 20 Fixed Single Bolt or 40 Swinging
Rotor - Shaft Diameter 6 in. (15.24 cm) Stress Proof Steel
Rotor Length 44 in. (111.76 cm)
Rotor Plates 16 in. (40.64 cm) Diameter x 1-1/2 in. (3.81 cm) Thick
Feed Opening 45 in. x 25 in. (114.3 cm x 63.5 cm)
Screen Area 2,403 Square Inches (15,503.19 sq. cm.)
Hammer Rods (8) - 1-1/2 in. (3.81cm) Diameter
Bearings 4 in. (10.16 cm) Oil Bath Bearing
Hammermill Drive Direct Drive through HPTO Oil Cooled Clutch
