You Asked For It and We Got It
The DuraTech 6010 is built for extreme wear and tear and comes equipped with a powerful Caterpillar C15 Tier III electronic diesel engine in optional sizes.
Easy operation is the key. Thanks to remote controls and a microprocessor-controlled wet clutch, it’s easier than ever to operate. The self-cleaning air intake system helps protect the engine, reduce engine noise, and extend the life of your machine. No matter the terrain, the DuraTech 6010 gets the job done.
Features

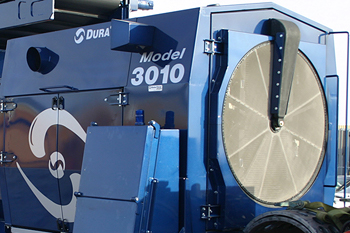

Rotary Self-Cleaning Screen with Enclosed Engine Compartment
The self-cleaning screen combined with the enclosed engine compartment reduces maintenance and noise, and provides for flexible positioning of the grinder. The door on the screener and the three doors per side on the engine compartment provide easy access to the radiator, oil coolers and engine for servicing.
Command Console with Remote Control
The 6010FL command console features master engine controls, gauges, and shutoff. Also included on the command console are electric over hydraulic controls for the clutch, governor, and stacking conveyor. The 6-function remote controls engine stop, tub rotation, stacking conveyor, and optional tub cover.

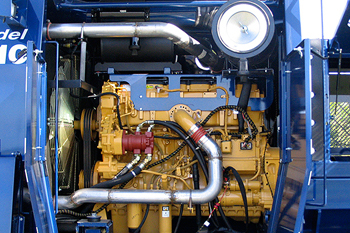

C15 Caterpillar Electronic Diesel Engine with Enclosed Engine Compartment
The 6010FL is powered by a 540 HP (401.7 kW) C15 Caterpillar Electronic diesel engine that is backed up by Caterpillar’s superior service and reliability. The engine is housed in an enclosed engine compartment to protect the engine from debris while reducing noise levels.

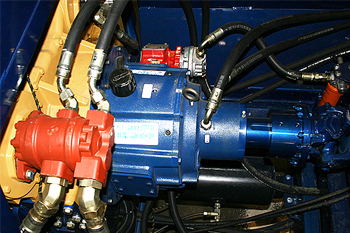

PT-Tech HPTO 14 Wet Clutch
The 6010FL Industrial Tub Grinder is equipped with a self-adjusting PT-Tech HPTO 14 wet clutch. This clutch is microprocessor-controlled with a built-in torque limiter and brake that provide superior protection for the engine and drive line.

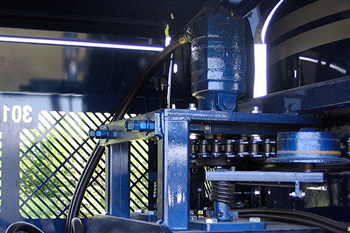

Single Drive Orbit Motor Drives the Tub
Utilizing a heavy-duty 120H drive chain, a continuous chain sprocket around the tub, an 8” (20.32 cm) heavy-duty tub channel, and dual spring adjustable chain tensions, the tub is driven by a single orbit motor. Tub speed is controlled by the electronic governor.

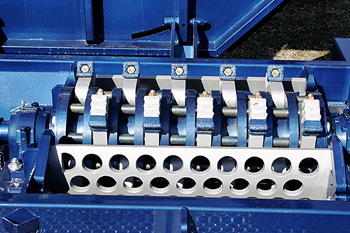

44” Rotor
The 6010F industrial tub grinder is equipped with a 44” (111.76 cm) rotor mounted on a 6” (15.24 cm) shaft with 4” (10.16 cm) greasable bearings. The dynamically balanced rotor may be used with either 20 fixed hammers or 40 swinging hammers.

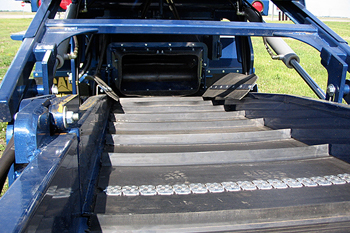

30" Wide Belly Belt
The 30" wide impact-resistant belly belt carries the finished product to the stacking conveyor.

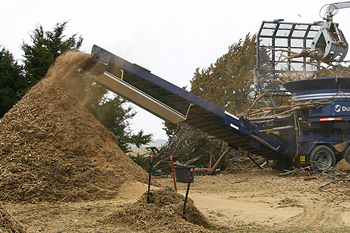

30” Wide x 26’ Long Oscillating Top Drive Stacking Conveyor
The 30” (76.2 cm) wide by 26’ (7.92 m) long compact stacking conveyor allows the operator to load material into a truck or onto an existing pile up to 18’ (5.48 m) high. Additionally, the stacking conveyor swings 50 degrees from side to side. An optional magnetic roller and aluminum chute remove ferrous metal from the finished product.

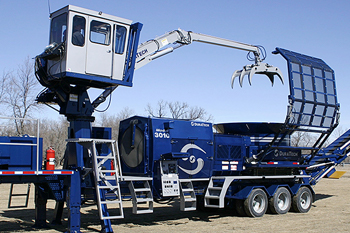

7000 Series Continuous Rotating Grapple Loader
The 7000 series continuous rotating grapple loader on the 6010FL Industrial Tub Grinder features joystick operator controls, 25’ (7.62 m) boom length, secondary controls and gauges in the cab, and the ability to raise the cab 4’ (1.22 m).

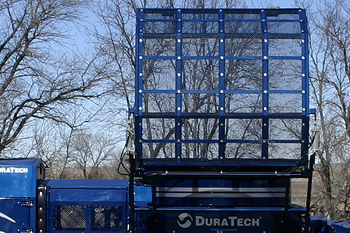

Optional Hydraulically Operated Tub Cover
An operational characteristic of all grinders is that objects may be thrown out of the tub. Tub covers reduce the risk of potential injury or property damage from thrown objects. Proper use of the tub cover provides the operator with a means to help control the area over which thrown objects may fall. Combined with a decrease in the percentage of objects thrown from the tub, the tub cover is an effective means of reducing risk to personnel and property.
Find a DuraTech Dealer
Standard Options
- Command console
- 44” router mounted on 6” rotor shaft with 4” greasable bearings
- HPTO oil cooled clutch
- Impact-resistant vulcanized belt
- 30”x26’ stacking conveyor
- Single orbit motor tub drive through 120H chain
Optional Features
- Remote control
- Magnetic roller complete with aluminum deflector chute
- Screen sizes
- Lockable steel toolbox
- Tub cover
Specifications
WEIGHT | |
---|---|
Weight | 51,540 lbs. (23,378.15 kg) |
Hitch Weight | 13,200 lbs. (5,987.42 kg) |

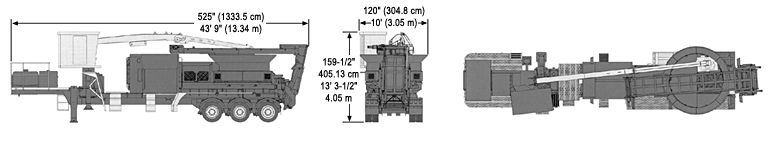

TRANSPORT DIMENSIONS | |
Transport Width | 9 ft. 6 in. (2.9 m) |
Transport Height | 13 ft. 4 in. (4.06 m) |
Transport Length | 43 ft. 9 in. (13.34 m) |
CHASIS FEATURES | |
Axle | (3) 22,500 lbs. (10,208.83 kg) |
Electrical | 24 volt machine |
Tires | (12) - 255 x 70R X 22.5 |
Engine | 540 hp (402.68 kW) CAT C15 |
Clutch | HPTO 14 Wet Clutch |
Fuel Capacity | 300 Gallons (1,135.6 Liters) |
Hydraulic Oil Capacity | 110 Gallons (416.6 Liters) |
Lights | Clearance, Directional & Tail |
TUB | |
Tub Width | 10 ft. (3.05 m) |
Depth | 46 in. (116.84 cm) |
Tub Diameter at Base | 8 ft. (2.44 m) |
Tub Wall | 1/4 in. (.635 cm) Thick |
Tub Floor | 3/8 in. (.953 cm) Thick |
Tub Drive | 120H Chain, Single Drive Hydraulic Motor |
Service Access | 90° Tilting Tub |
Tub Speed Sensor | Electronic Self Governing |
CONVEYORS | |
Stacking Conveyor | 26 ft. L x 30 in. W x 8 in. D (7.62 m L X 76.2 cm W X 20.3 cm D) |
Belly Conveyor | 30 in. (76.2 cm) Wide Impact Resistant |
HAMMERMILL | |
Hammers | 20 Fixed Single Bolt or 40 Swinging |
Rotor - Shaft Diameter | 6 in. (15.24 cm) Stress Proof Steel |
Rotor Length | 44 in. (111.76 cm) |
Rotor Plates | 16 in. (40.64 cm) Diameter x 1-1/2 in. (3.81 cm) Thick |
Feed Opening | 45 in. x 25 in. (114.3 cm x 63.5 cm) |
Screen Area | 2,403 Square Inches (15,503.19 sq. cm.) |
Hammer Rods | (8) - 1-1/2 in. (3.81 cm) Diameter 43 in. (109.22 cm) Long |
Bearings | 4 in. (10.16 cm) Greasable Bearing |
Screens | Split Screens 1 in. (2.54 cm) Thick |
Hammermill Drive | Direct Drive through HPTO Oil Cooled Clutch |
